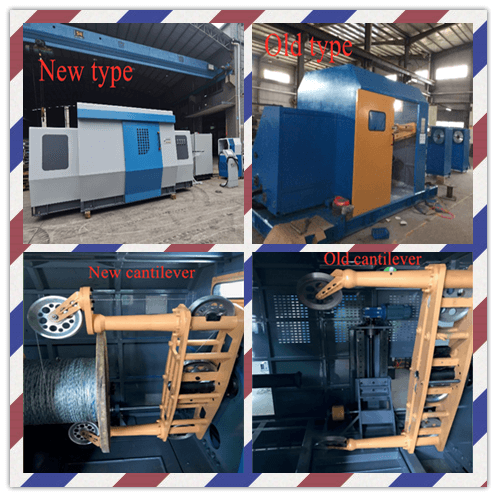

The new type cantilever single twisting machine of Witman

The performance and characteristics of the new type cantilever single twisting machine;

1. Appearance; the appearance design adopts modern CNC machine tool, which is different from the traditional common type. The welding and punching are processed by modern laser technology, with beautiful appearance and generous appearance;

2. The base is made of high-quality square tube section by welding, with mechanical structure performance, firm, stable and not easy to deform. This new design patent has been obtained. HL: 2014.2.0533835.9;

3. Lifting mechanism, manual horizontal moving bobbin of loading and unloading, electric lifting mode, which is different from the traditional ordinary slope, footwall and hydraulic lifting, ensures the safety of workers and machine, saves time and labor, and avoids the deformation of the lifting scissor fork structure of the hydraulic lifting platform;

4. Cantilever structure: it is made of imported high-quality alloy aluminum plate and aluminum bar, which is processed precisely, combined with suspension beam, assembled without welding to eliminate process error, and the structure is firm without deformation; it is different from the traditional steel parts and suspension beam integrated structure, which is easy to deform; the new cantilever threading is more convenient and fast, and the diameter is reduced by 30% at the same speed Centrifugal force is greatly reduced, energy loss is reduced, and energy saving is 20%. This application-oriented patent was obtained. ZL. 2018.2.2110491.1

5. Take-up principal axis : it is made of high-quality steel by casting, heat treatment, finishing and other processes, without welding, with excellent mechanical bending strength;

6. Differential assembly: the shell is made of imported high-quality alloy aluminum, and the internal gear is made of high-quality steel by grinding and other special processes. It is wear-resistant and the noise is less than 75 decibels. The application patent is obtained. ZL. 2018.8.8723943.1

7. Row screw rod; high quality steel is selected for heat treatment, the thread is designed with trapezoid screw thread, and the nut is made of tin bronze and assembled with universal joint; the mechanical property is stable, durable and smooth;

8. Bearing and synchronous belt; bearing adopts imported NSK and domestic high-quality bearing; synchronous belt adopts imported smoot brand, durable;

9. Equipment efficiency: the design speed is 1000 Rpm, and the maximum working speed is 900 Rpm, which is 15% higher than the traditional ordinary type;
