Purpose
Applicable to all kinds of power cable, 5, 6, 7 class data cables, communication cables high-frequency signal wires and other special cables high speed stranding, and also complete the center zone and the side bag.
Performance Characteristics
Technical Data
| Model | DJ-XB-630 | DJ-XB-800 | DJ-XB-100 | DJ-XB-1250 | |

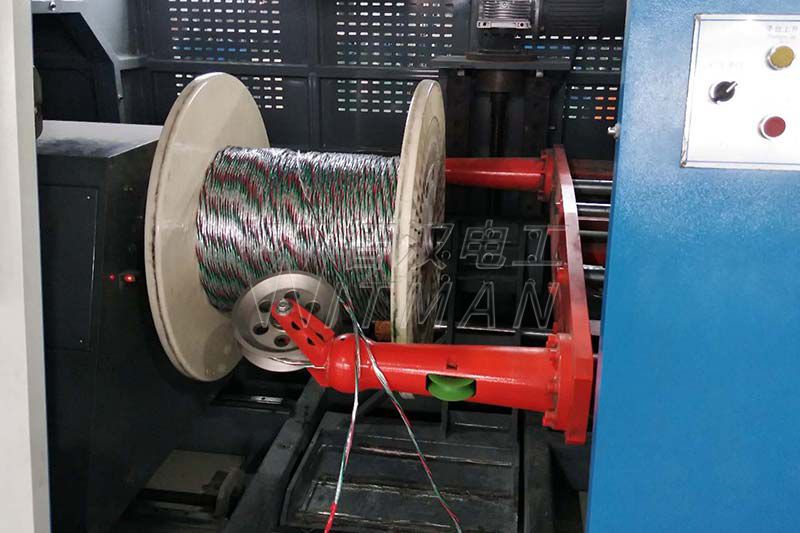

| Pay-off bobbin | Ф400-ф500-ф630 | Ф400-ф500-ф630 | Ф400-ф500-ф630 | Ф400-ф500-ф630 | |
| Take-up bobbin | Ф630 | Ф800 | Ф1000 | Ф1250 | |
| Outer diameter | Ф0.6-Ф3.0 | Ф1.0-Ф5.0 | Ф1.0-Ф5.0 | Ф1.0-Ф5.0 | |
| Max twisting diameter | Ф15 | Ф20 | Ф25 | Ф30 | |
| Lay | 20mm-200mmStepless regulation | 30mm-300mmStepless regulation | 30mm-350mmStepless regulation | 30mm-400mmStepless regulation | |
| Speed of rotation | 1100 | 800 | 600 | 500 | |
| Wire arrangement direction | Bobbin reciprocates on the screw rod | ||||
| direction | Left to right or Right to left | ||||
| Taping method | Center winding or side straightening | ||||
